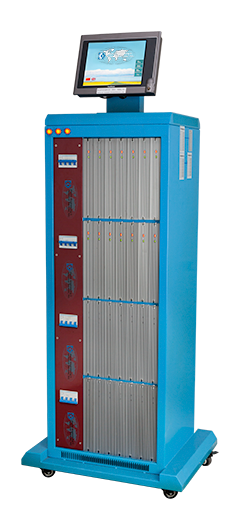

Recently introduced by Plastic Engineering & Technical Services, the new PHRS-GU
Temperature Control System allows users to monitor, setup and control the system via
a computer LAN network using an Internet connection. The PHRS-GU is a user-friendly
diagnostics system that delivers precise multiple zone temperature control resulting in
a quality end product. This technologically-advanced system has many additional features to
reduce maintenance requirements and improve safety. The versatile PHRS-GU Temperature
Control System requires only one controller to process all load sizes. Regardless of the number
of zones, (up to 128) the controller remains the same size.

The standard features and benefits include:

• Automatic Internal Switching - detects a thermocouple reverse condition and maintains operations
• Automatic Switch - reads an open thermocouple and adjusts to manual mode
• Automatic Shut-off – finds shorted or incorrectly wired thermocouple and turns off
• SPI Communication Capabilities
• High/Low Temperature Alarm Indicator – alerts operator when temperature is +/-40° F from set-point
• Automatic /Manual Control Modes
• Full PID Control
• Warm-up Cycle
• LAN Network System Monitoring, Set-up and Control – utilizing Internet Explorer or Netscape
• 220VAC Three Phase (Also supports 220VAC and 110VAC Single Phase)
• 10.4” LCD Touch Screen Display – includes keyboard and mouse.
• Wet Heater Detection
• Unlimited Recipe Storage
• Automatic Save of Preset System Configuration – saved at shutdown and automatic reload of last used configuration at start-up
• Micro-processor Controlled – autonomous single card per zone that is user serviceable
• Heaters Fused at 20A – user serviceable
• Integrated Heat Sink System – rated for 4,400 Watt Heater per zone
• Triac Temperature Sensing – includes high temperature alarm
• High Current Bus Bar Power Distribution to Each Zone
